CNC Lathe Machine
CNC Wood Turning Lathe is a CNC Wood Lathe that is suitable or processing work pieces with large diameter and short length. It can process hardwood and softwood pasted wood with high speed steel or carbide cutter. Wood CNC Lathe can finish rough and fine turningsuch as outer circle, inner hole, end face, cone surface, groove cutting and cutting. The CNC Wood Lathe is mainly used for processing handicrafts such as Pillar, Stai Railing, Stairway Balusters, Stairway NEWEL Posts, Wooden Bowl, Dining Table Legs, End Table Legs, Sofa Table Legs, Bar Stool Legs, Chair Legs, Chair Arm Posts, Chair Stretchers, Bed Rails, Lamp Posts, Baseball Bats and Pen Cylinder and other work pieces with rotating surface. The performance of CNC wood turning lathe is outstanding. It can work more than 24 hours one time without stopping.
Features
Key Features
- Maximum working length is 1500mm, Max. turning diameter is 30.
- The machine has two cutters at two sides of the machine and cut at the same time, improve the efficiency greatly.
- Taiwan PMI guiderail, Germany Ball Screw, High Precision and Durable.
- Heavy Caste Iron Lathe Bed avoid shaking when the spindle rotates fast or the big sizes workpiece process, and the main spindle speed can be adjusted through the frequency converter.
- Easy Operation. We can draw by AutoCAD and other software, transfer the files to machine by a USB.
- The machine with auto knife change table, it can change the knife according to different work automatically.
- DSP Control System, Easy to Operate.
- It can choose to install spindle for grooving, slotting, one ofetc.
Technical Specification
| CNC Lathe Machine | ||
| Standard Working Area | mm × mm | 1500 × 300 | 1500 × 160 | 1500 × 400 | 2000 × 300 | 2000 × 400 |
| Max Processing Length | mm | 1500 | 2500 3000 |
| Max Turning Diameter | mm | 300 | 400 | 160 |
| Spindle Power | KW | 3.5KW Air Cooling Spindle |
| Air Pressure | Mpa | 0.6-0.8 |
| Power Supply | V | Hz | AC 380V | 3 Phase | 50Hz/60Hz | 220V |
| Max Feed Rate | cm/min | 200 |
| Min. Setting Unit | cm | 0.01 |
| Transmission Type | Ball Screw for X, Z Axis | Gear Rack for Y Axis | |
| Guide Rail | Taiwan HIWIN Square Guide | |
| Main Shaft Rotating Speed | rpm/min | 0-3000 |
| ControlSystem | DSP Handle Control | |
| Drawing Software | Software | AutoCAD |
| Hand Controller Recognise File | Format | *.dxf |

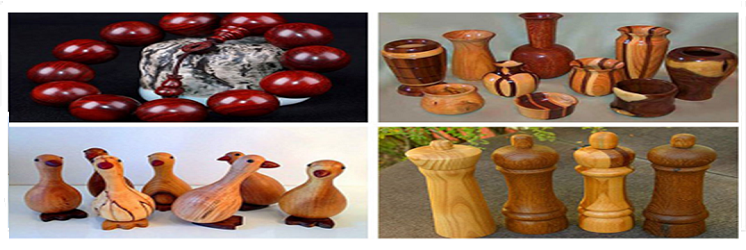

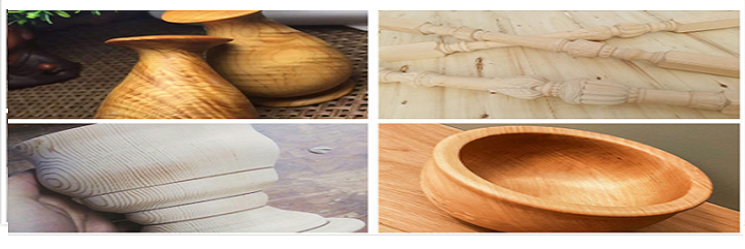

Machine Sample
