Multi Spindle CNC
Wood Router
(Model Variants: 1313 | 1325 | 1530 | 2513 3015)
BullzCutCNC Multi Spindle Woodworking Engraving & Cutting Wood Router is Computerised Flat Bed Craftsman CNC Wood Carving Engraving Router Machine. CNC Wood router is a type of wood cnc machine for 2D | 3D cutting, carving, routing, milling, drilling & engraving on most popular wood working. It is suitable for carpentry, wooden doors, furniture, cabinets, models etc. The carving materialmay be wood sheet mdf hard wood, acrylic sheet, pvc sheet, pcb sheet abs double color sheet aluminium brass gold silver etc. Cutting, 2D Engraving, 3D Engraving, Hollowing may be done by this machine.
Features
Key Features
- Contains Multi Spindles in CNC Machine.
- Spindle power is 6000/24000 rpm/min.
- Good Quality Drive Motor.
- Gear Wheel for XY Axis and Ball Screw for Z Axis.
- Process Fast and Efficient.
- High precision Machine.
- Useful for Engraving and Cutting.
- Used in Carpentry and Furniture Work.
Acrylic Sheet | PVC Sheet Work
Wooden Furniture Industry
Carpentry Work
Technical Specification
| Multi Spindle CNC Wood Router | ||
| X Axis Stroke | 2500 | 3000 | 3600 (Optional) | |
| Y Axis Stroke | 1500 | 2500 | 3000 | 3600 (Optional) | |
| Z Axis Stroke | 300 | 400 | 450 | 500 (Optional) | |
| Running Speed (X/Y) | m/min | 20 |
| Running Speed (Z) | m/min | 10 |
| Spindle Power | rpm/min | 6000/24000 |
| Travelling Positioning Accuracy | mm | +0.05 |
| Repositioning Positioning Accuracy | mm | +0.05 |
| Voltage | V | AC 380V | 50/60hz |
| Control System | mm | DSP a11 | NK105 | NC Studio |
| Drive Motor | Servo | Easy Servo | Stepper Motor | |
| Oiling | Automatic | |
| Command | g-code* u00.mmg*.plt | |
| X,Y & Z Structure | Gear Wheel for XY Axis, Ball Sccrew for Z Axis | |
| Guide Rail | Korean Square Guide Rail for XYZ Axis | |
| Spindle Power Motor | KW | 4.5 | 6 | 7.5 | 9 (Water Cooled Optional) |
Machine Samples
CNC Wood Router Parts
NK105 Wehiong
DSP A11 Rich Auto
Motors YAKO

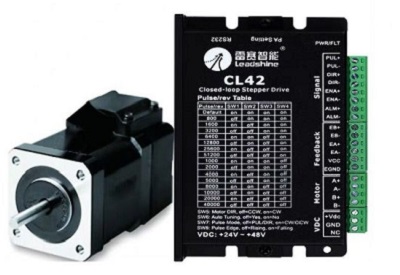

Leadshine Motor
Panasonic Motors
Plaentry Gears
Belt Driven Gears

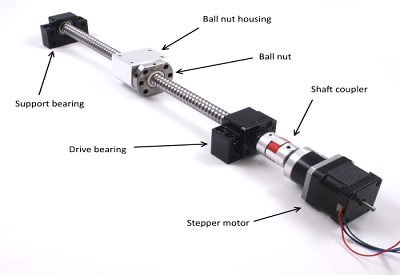

SBC Korean Ball Screw

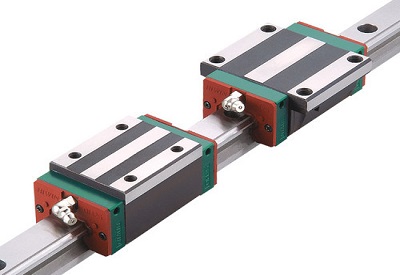

Linear

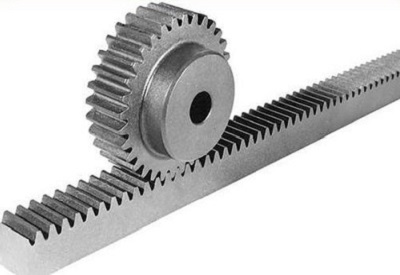

Rack

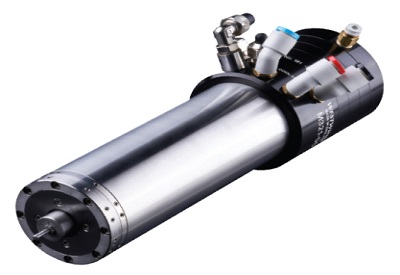

Automatic Tool Changer

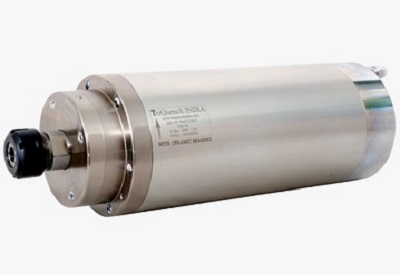

Water Cooled Spindle
Air Cooled Spindle
