Stone 5 Axis Bridge Cutting
CNC Machine

(Model Variants: BZ-3020 | Stone 5 Axis Bridge Cutting)

Stone 5 Axis Bridge Cutting CNC Machine is used to process Granite, Marble, Artificial Stone, Slab and other types of Stones. The machine head can swing 3600 freely, and the plate can be cutat any angle and shape horizontal cutting, longitudinal cutting, Arc Cutting, Elliptical Cutting and round cutting. This machine can also be used for bump edging. In addition to the cutting shape, it can also cut the large plate with 450 chamfering, opening the basin hole, stove hole, and diagonal cutting. The platform can be turned by 850 which is convenient for loading and unloading. No complicated operation, just input data on the control system. Equipped with a Grinding Wheel device, which can polish the table hole and cutting surface.

Double Heads CNC Wood Router
Download Brochure Make an Inquiry General Catalogue

Features

Key Features

  • This is a Fully Automatic Five-axis infrared bridge cutting machine.
  • It has multi-language conversion.
  • In this, table top pro processing can be done by one machine.
  • It has x-y-z-a-b five-axis linkageso it has a wider range of applications, can realize cutting, chamfering, edging, Grooving, Drilling, Circular and other special-shaped processing.
  • It has simple operation and strong practicability.
Stone 5 Axis Bridge Cutting CNC Machine

Technical Specification

Stone 5 Axis Bridge Cutting CNC Machine
Model &nbps;&nbps;&nbps; BZ-3020
Processing Size mm × mm 3000 × 2000 | 3220 × 1620
Saw Diameter mm 350
Platform Flab Angle 0Degree 0-85
Head Rptation Angle 0Degree 0-360
Tilt Angle of Nose 0Degree 0 or 45
Cutting Motor KW 7.5 | 11
Transfer Method     X-Y-A Axis Gear Drive | Z Axis Screw Drive
Drive Way     Ruiou 1.3KW Servo Motor | Driver +2.2KW
Dimension/Weight mm/Kg 6000×3000×2000/3500

Drive Motor
Axis Transmission Power Unit Power
X Axis Rack Gear Transmission Servo Motor KW
Y Axis Rack Gear Transmission Servo Motor 2KW*2
Z Axis Ball Screw Transmission Stepper Motor 2KW
A Axis Rack Gear Transmission Stepper Motor 1.5KW
G Axis Air Cylinder Pushing Pneumatic Cylinder KW
        Stepper Motor 10KW

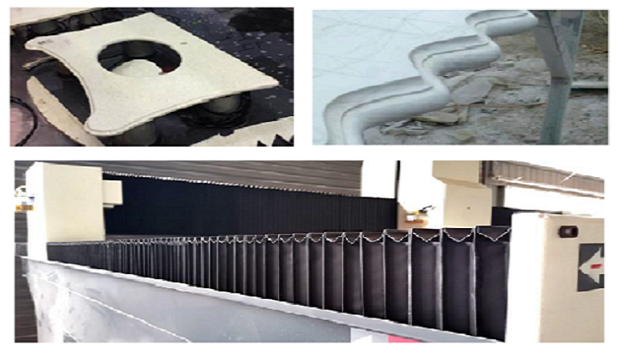

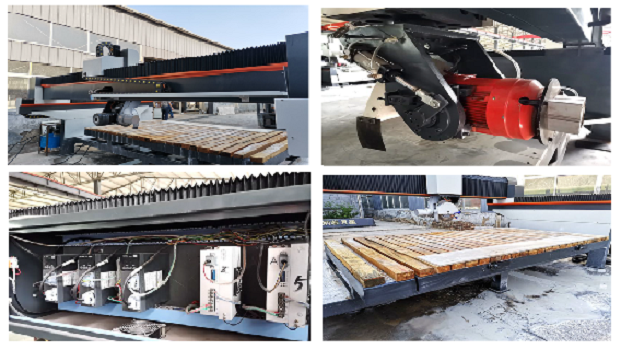

Machine Sample
